Splitter End Plates (fins) - A Pair

£99.99
Image 1 of Splitter End Plates (fins) - A Pair
Image 2 of Splitter End Plates (fins) - A Pair
Image 3 of Splitter End Plates (fins) - A Pair
Image 4 of Splitter End Plates (fins) - A Pair
Image 5 of Splitter End Plates (fins) - A Pair
Image 6 of Splitter End Plates (fins) - A Pair
Image 7 of Splitter End Plates (fins) - A Pair
Image 8 of Splitter End Plates (fins) - A Pair
Image 9 of Splitter End Plates (fins) - A Pair
Image 10 of Splitter End Plates (fins) - A Pair
Image 11 of Splitter End Plates (fins) - A Pair
Image 12 of Splitter End Plates (fins) - A Pair
Image 13 of Splitter End Plates (fins) - A Pair
Image 14 of Splitter End Plates (fins) - A Pair
Image 15 of Splitter End Plates (fins) - A Pair
Image 16 of Splitter End Plates (fins) - A Pair
Image 17 of Splitter End Plates (fins) - A Pair
Image 18 of Splitter End Plates (fins) - A Pair
Image 19 of Splitter End Plates (fins) - A Pair
Image 20 of Splitter End Plates (fins) - A Pair
Image 21 of Splitter End Plates (fins) - A Pair
Image 22 of Splitter End Plates (fins) - A Pair
Image 23 of Splitter End Plates (fins) - A Pair
Image 24 of Splitter End Plates (fins) - A Pair
Image 25 of Splitter End Plates (fins) - A Pair
1 / 25
1 of 25

PREORDER- Approx 2-3 week waiting time

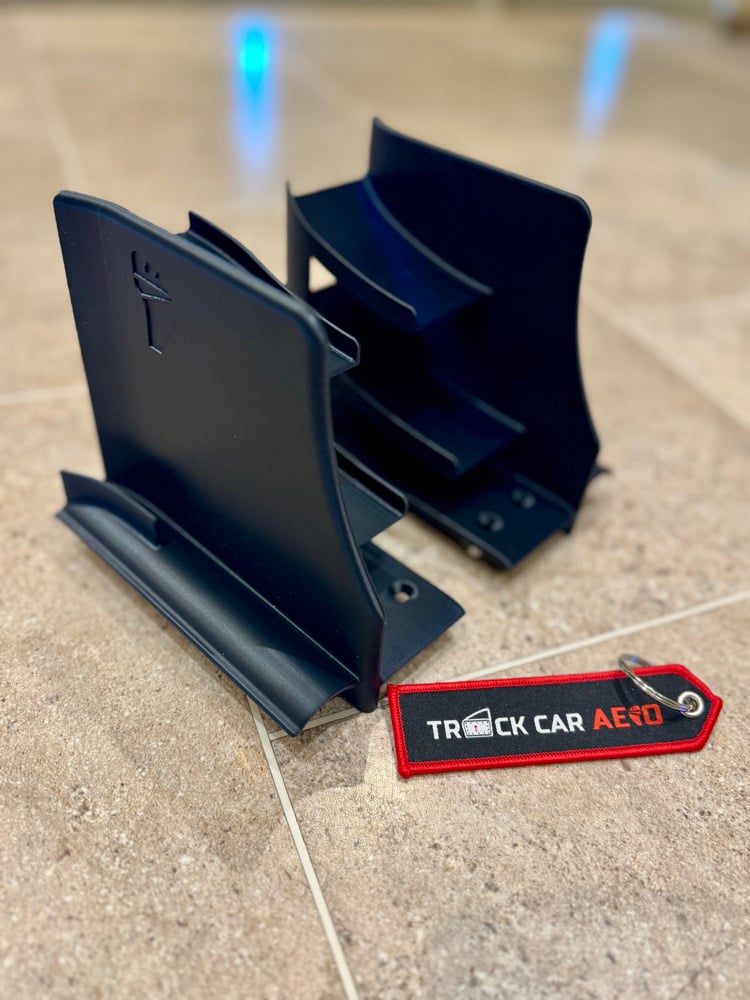

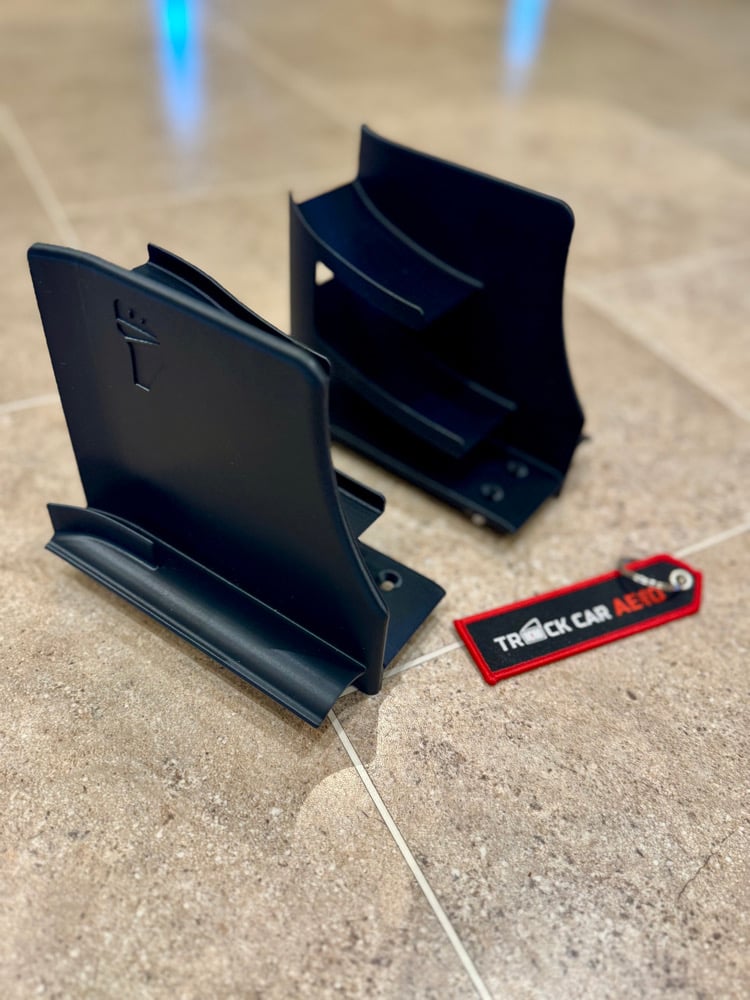

MAKING THAT SPLITTER MORE EFFECTIVE- Introducing a Universal splitter 3D printed splitter end plates using ASA which is
more UV resistant and not as toxic.

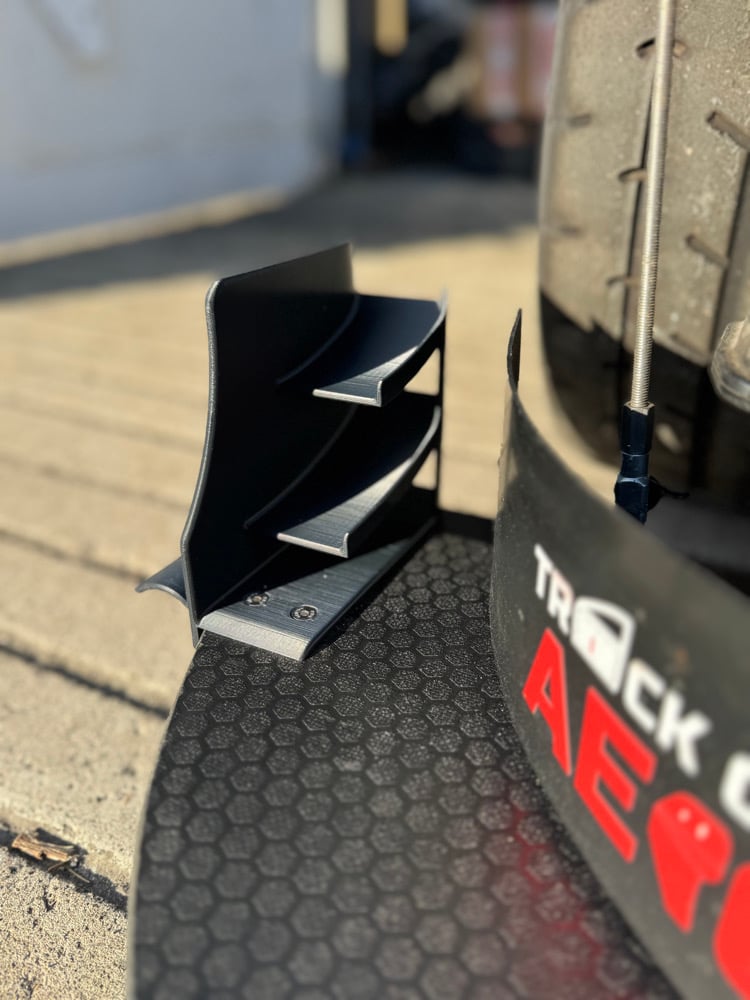

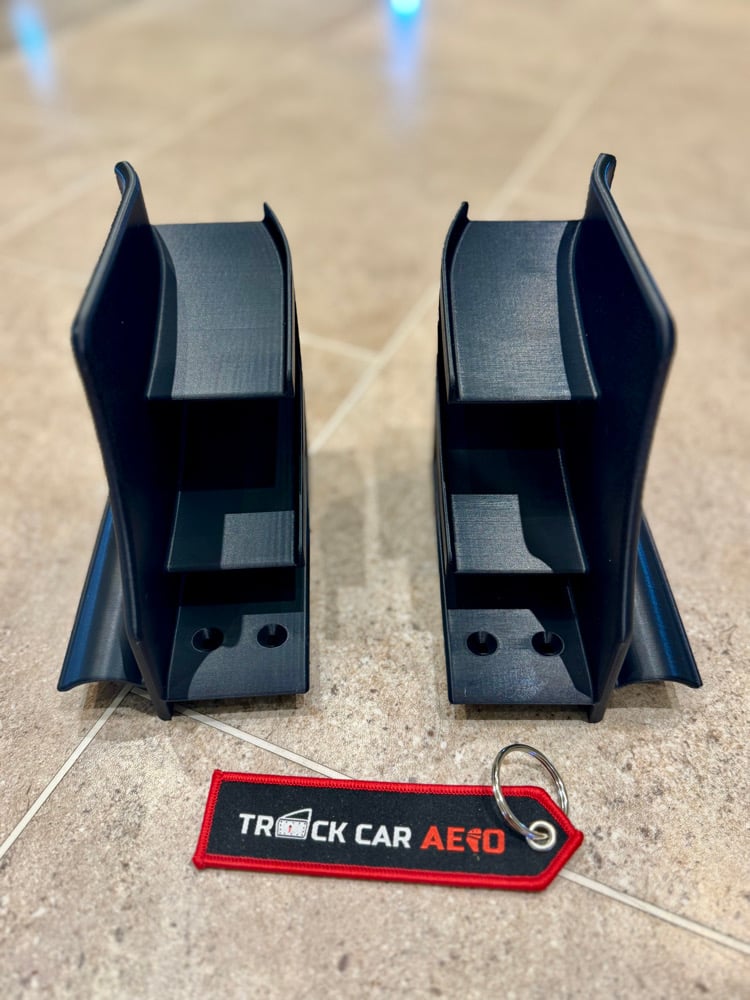

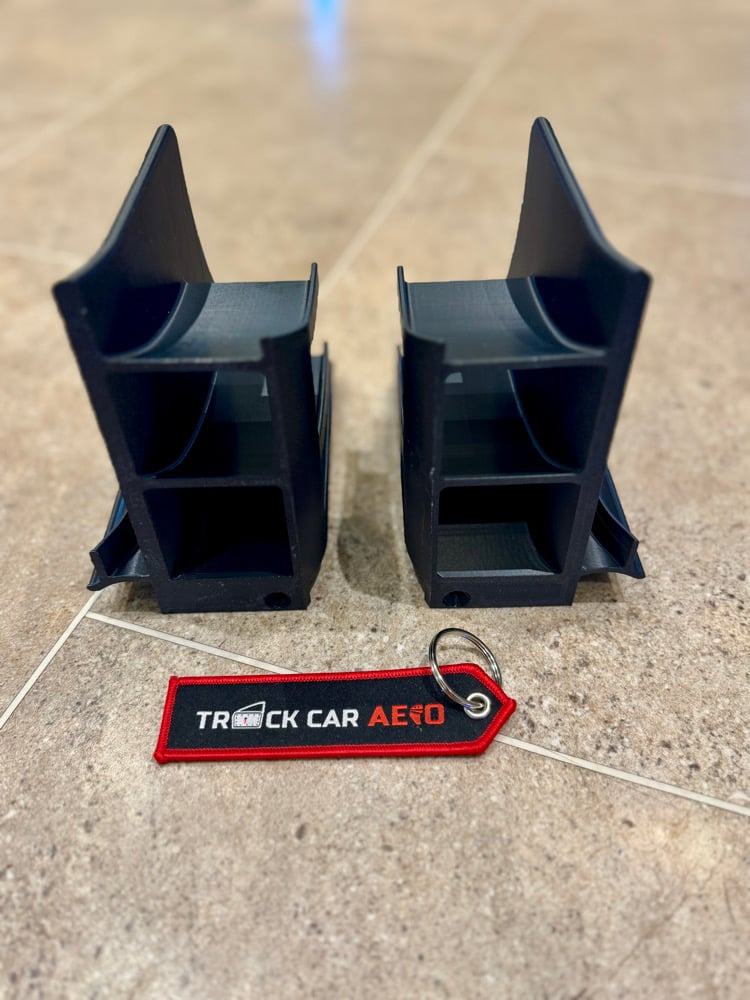

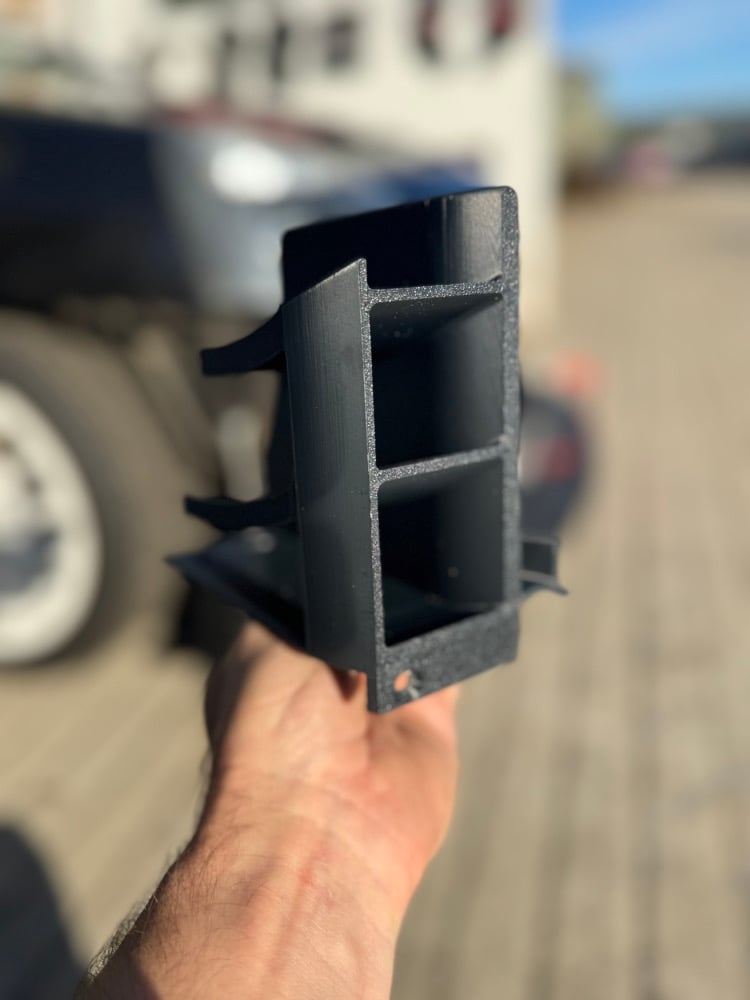

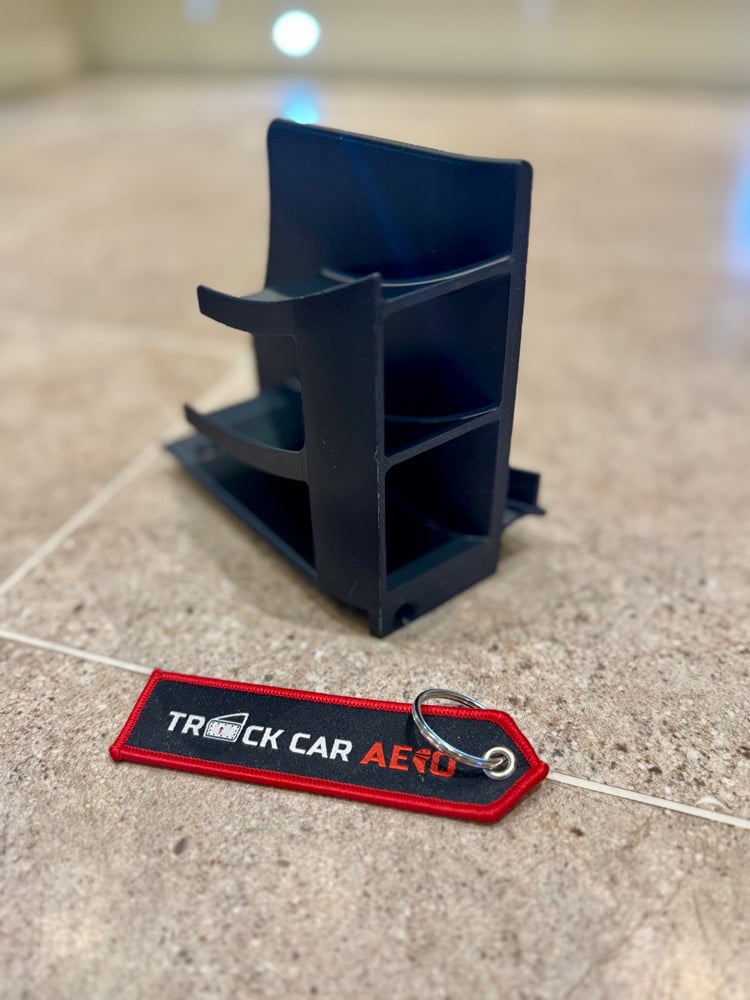

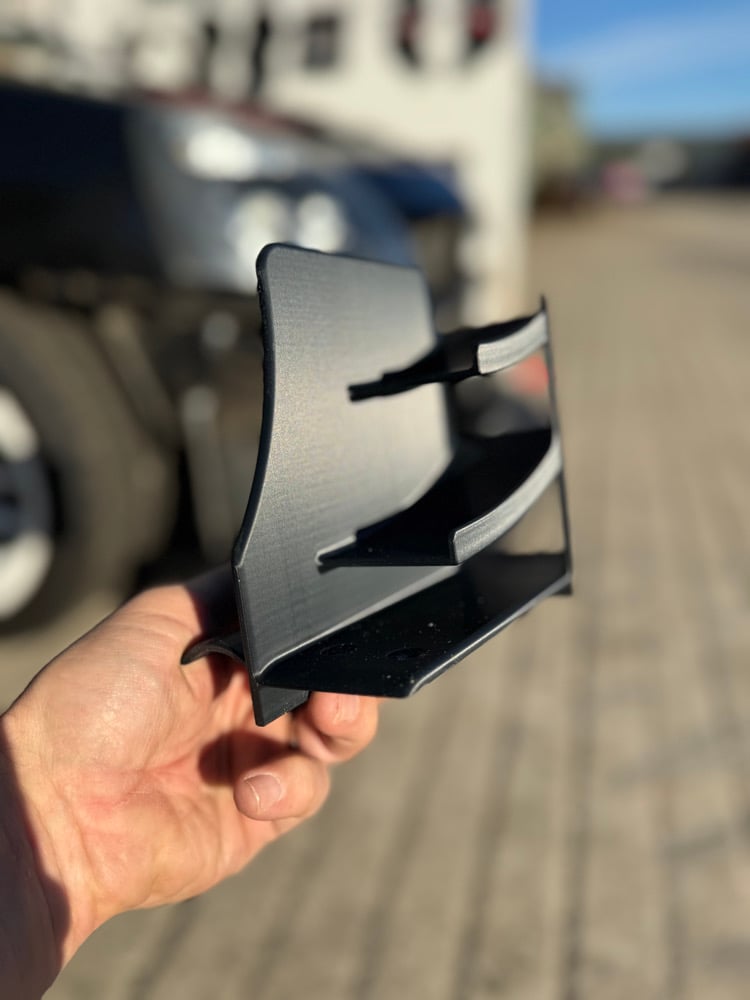

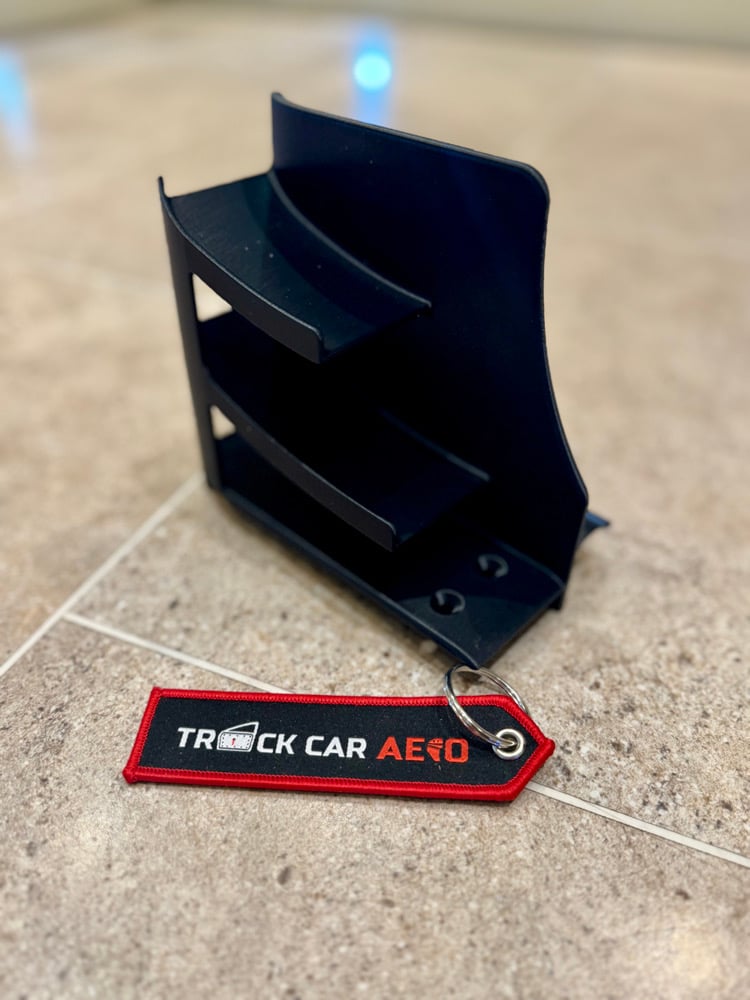

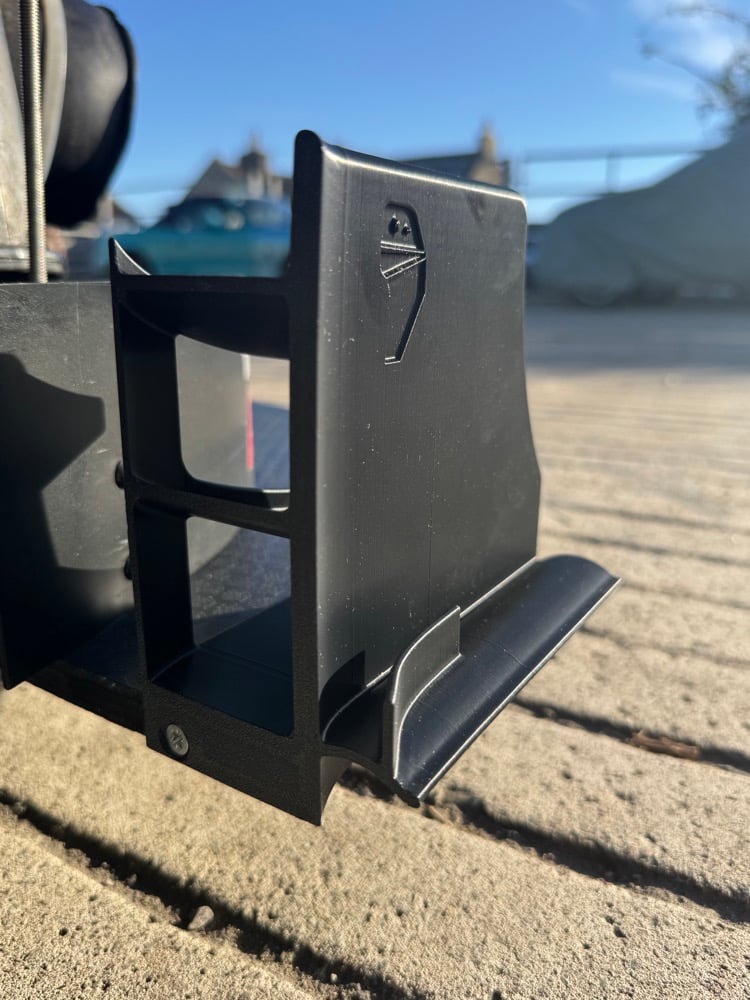

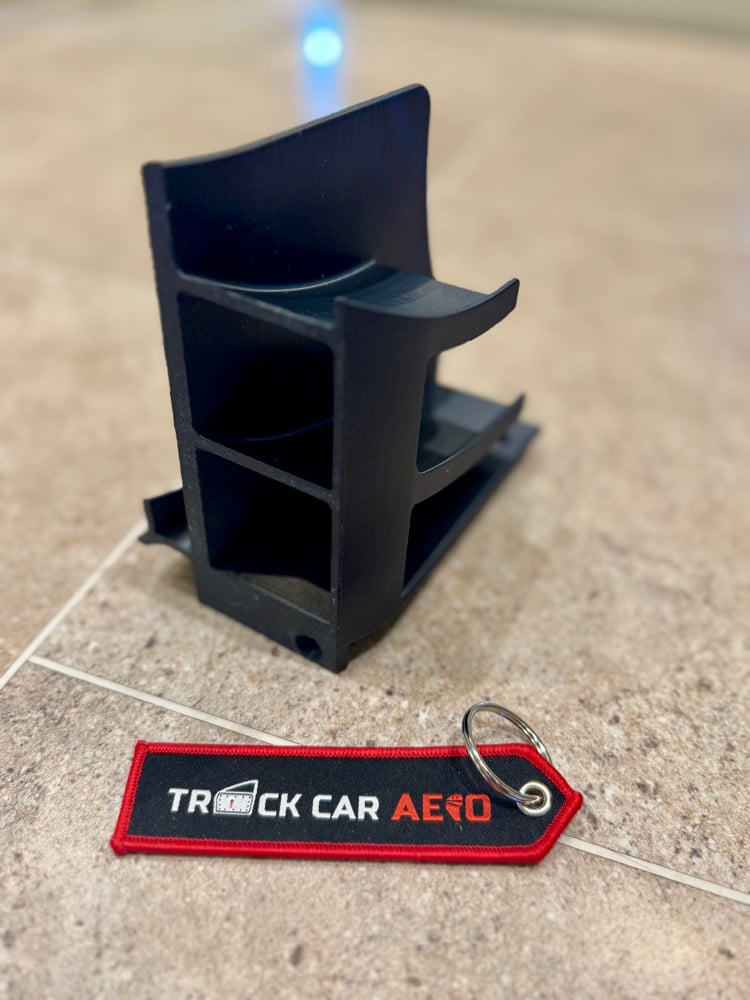

Splitter end plates increase a vehicle's front-end downforce by preventing air from spilling out the sides of the splitter and by managing airflow around the front wheels. These end plates have been designed with 2 internal fins and a Venturi Channel.

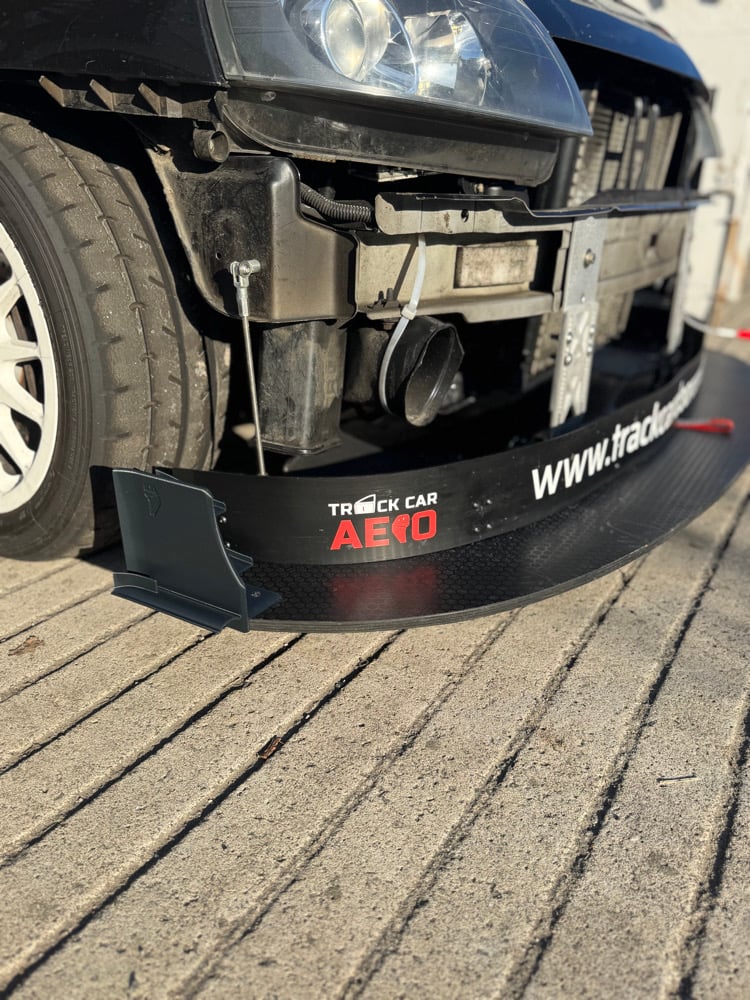

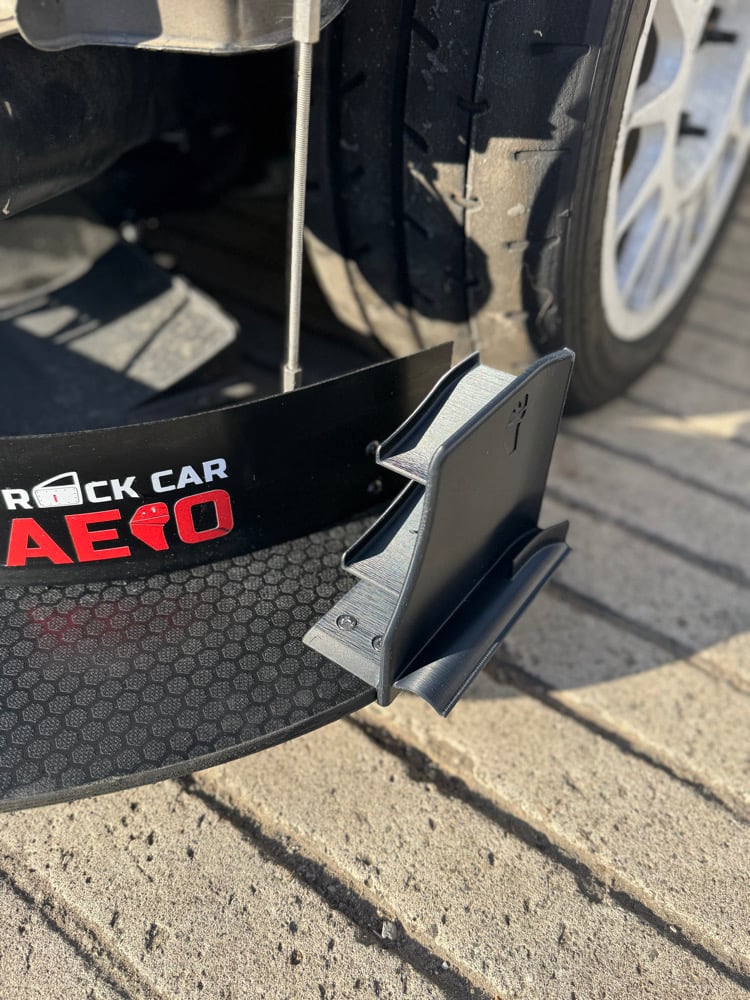

The end plate is designed for 12mm phenolic resin / Buffalo board, these are designed to slip directly onto the board with minimum of 50mm clearance from the end on your splitter to your bumper, however if you have a thinner splitter you can utilise the 2 holes on top and drill another hole towards the rear.

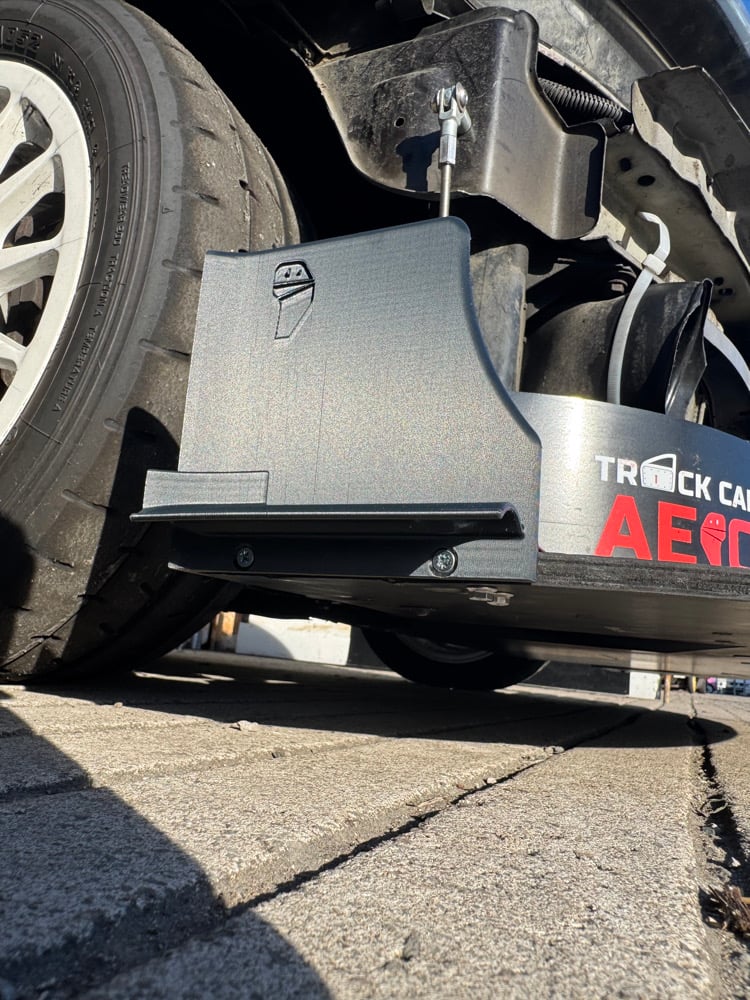

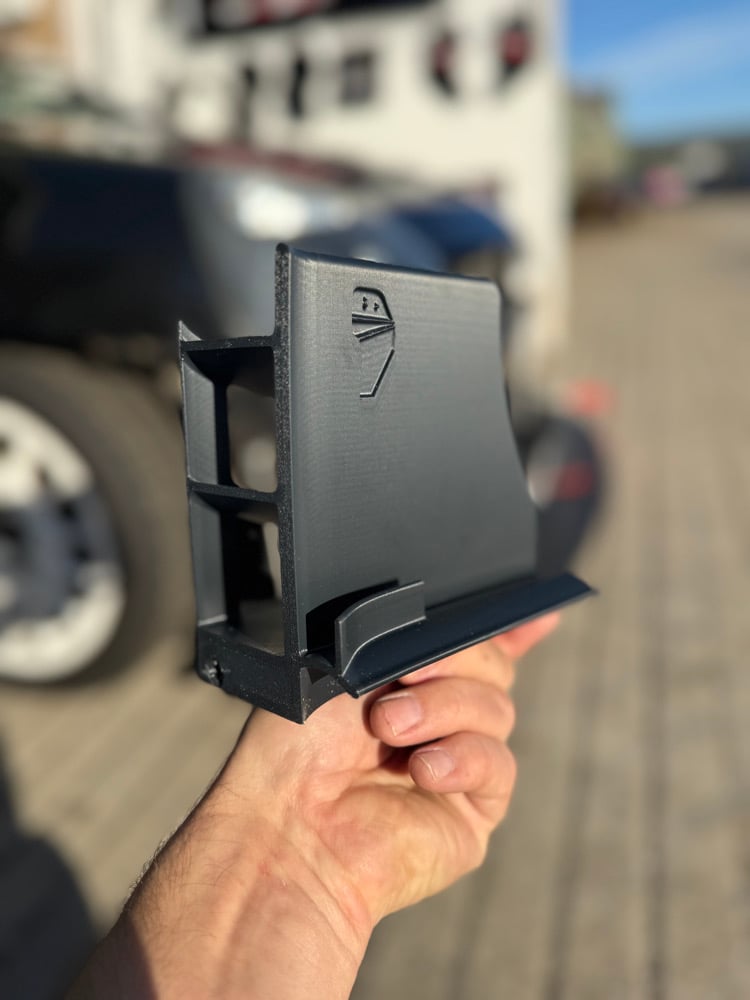

For a 12mm splitter there is a mounting flange on the side and back with 5 mounting points (2 on the top at the front (wood screws or bolts) , 2 on the side and 1 on the back (3 wood screws)

Diffuser dimensions:
145mm deep (front to back in including 5mm flange) - so 140mm along splitter edge
85mm wide (frontal / inc Venturi Channel) at the side
50mm fins (so minimum distance between edge of splitter and bumper to allow fitting)
140 mm tall total height / 128 mm measured from top of splitter

Sold as a pair
