Splitter End Plates - A Pair copy

£89.99
Image 1 of Splitter End Plates - A Pair copy
Image 2 of Splitter End Plates - A Pair copy
Image 3 of Splitter End Plates - A Pair copy
Image 4 of Splitter End Plates - A Pair copy
Image 5 of Splitter End Plates - A Pair copy
Image 6 of Splitter End Plates - A Pair copy
Image 7 of Splitter End Plates - A Pair copy
Image 8 of Splitter End Plates - A Pair copy
1 / 8
1 of 8

PREORDER- Approx 2-3 week waiting time

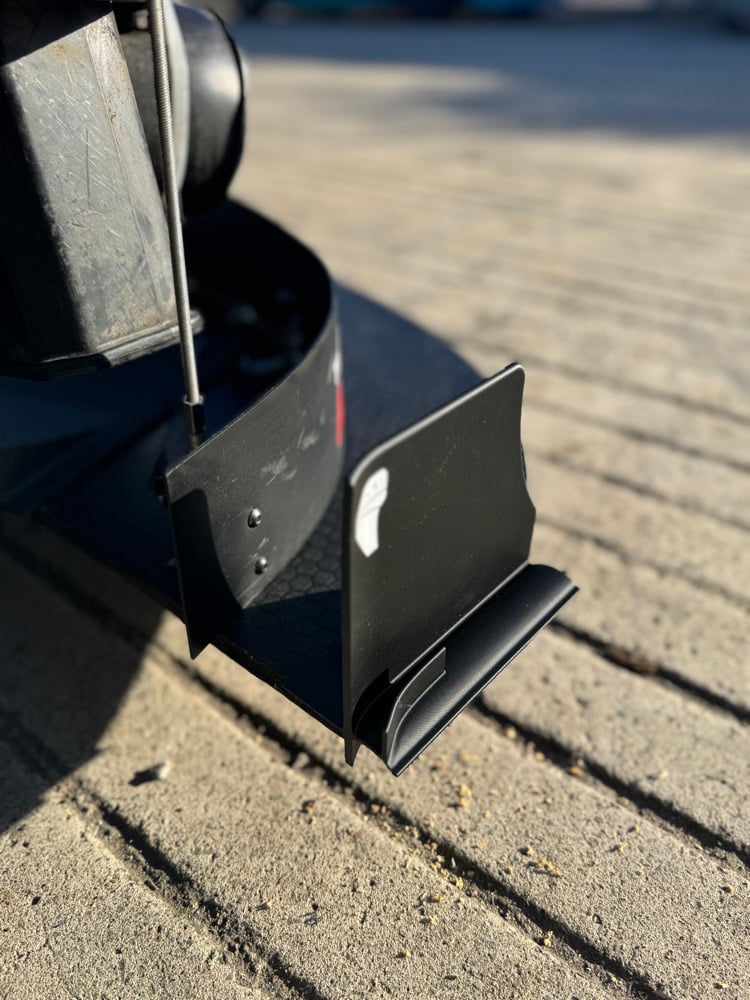

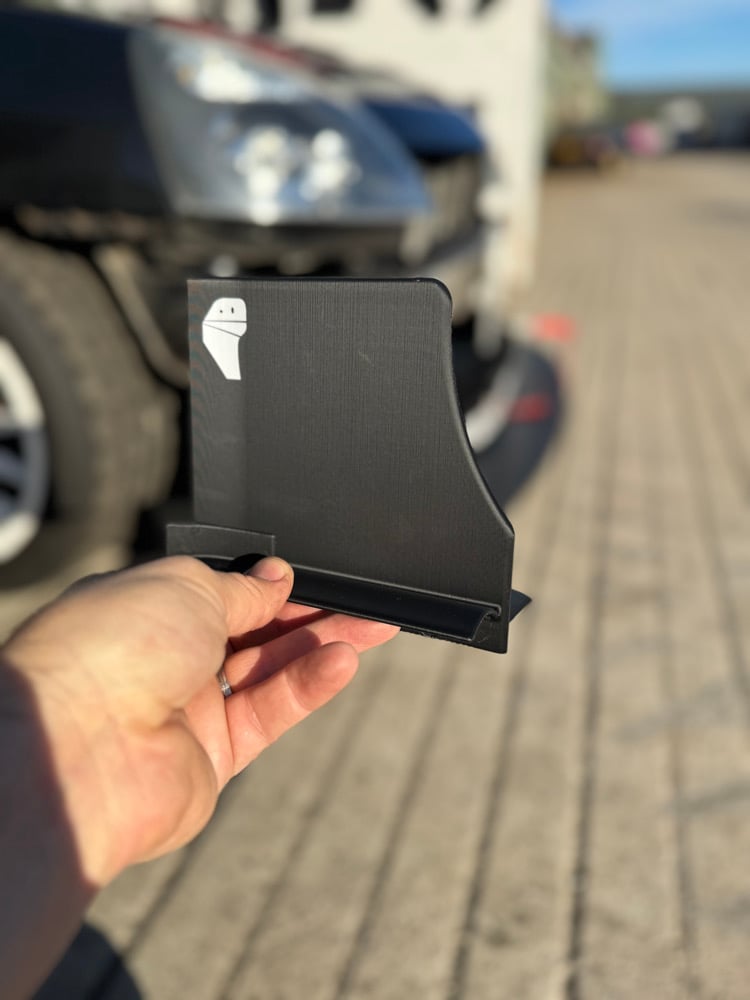

MAKING THAT SPLITTER MORE EFFECTIVE- Introducing a Universal splitter 3D printed splitter end plates using ASA which is more UV resistant and not as toxic.

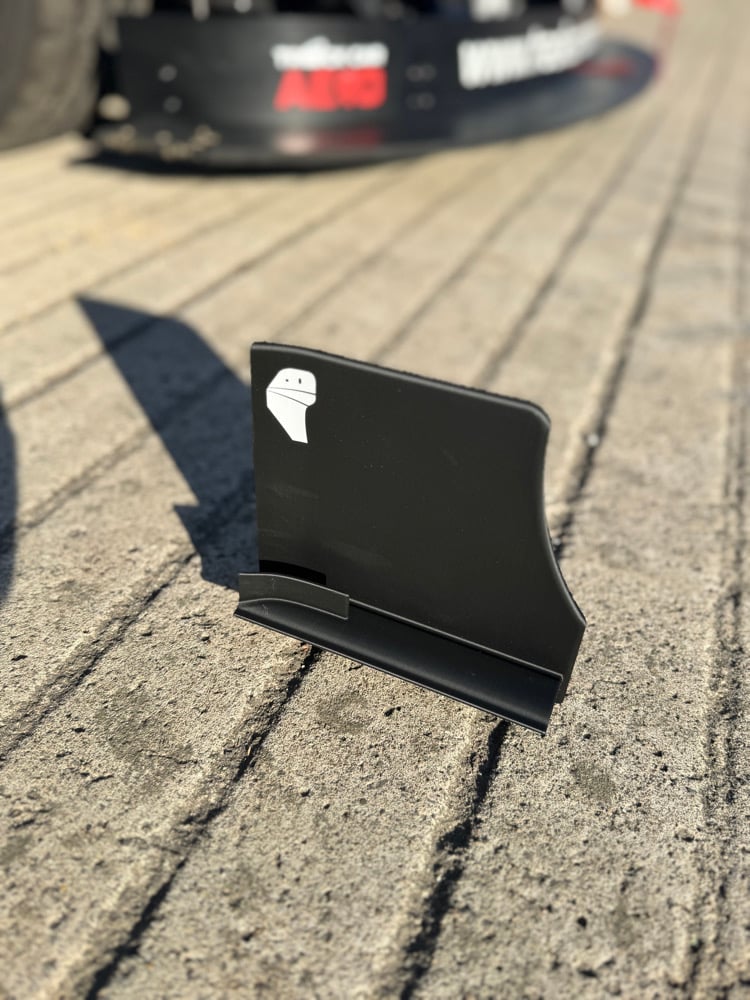

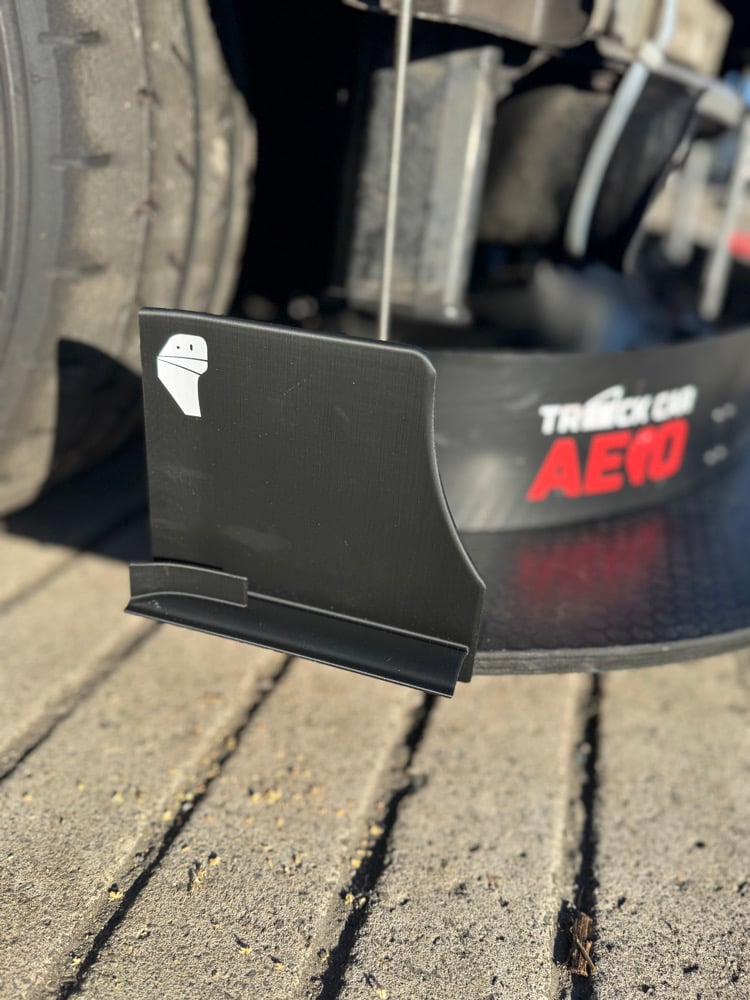

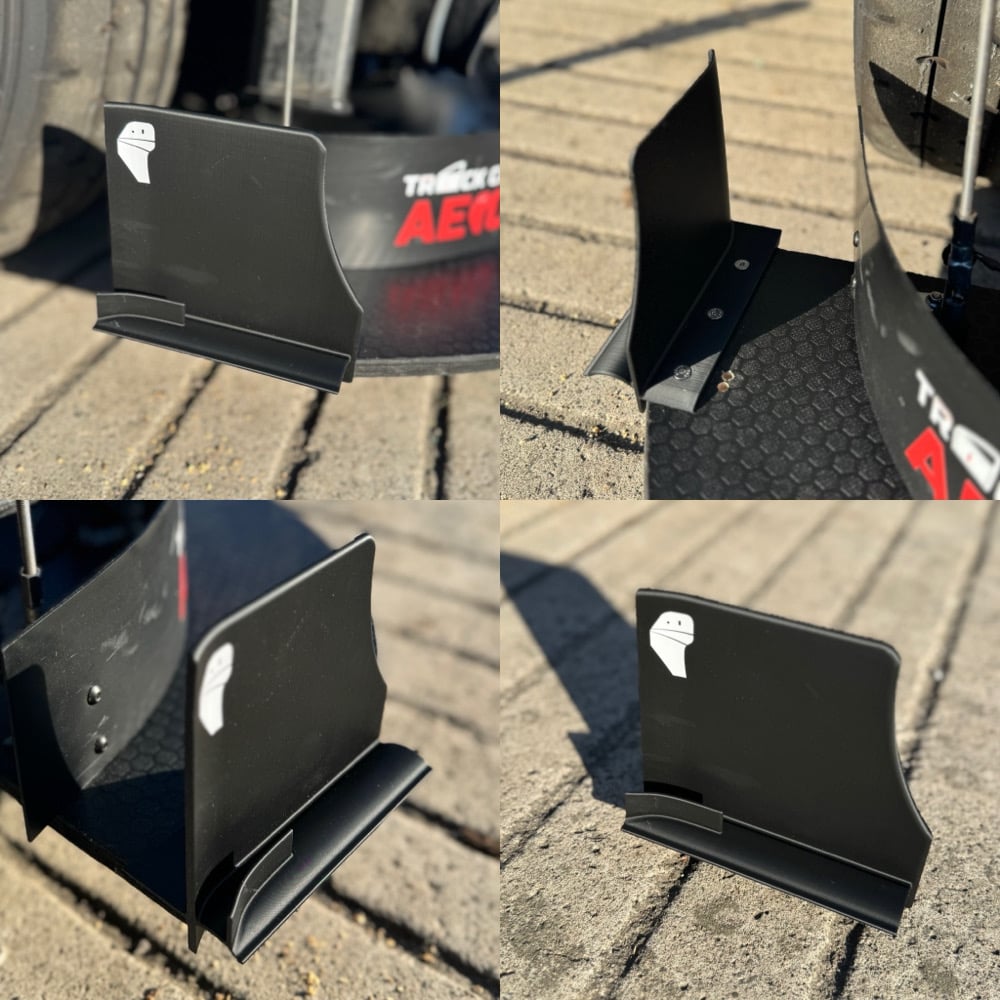

Splitter end plates increase a vehicle's front-end downforce by preventing air from spilling out the sides of the splitter and by managing airflow around the front wheels. These end plates have been designed with a Venturi Channel.

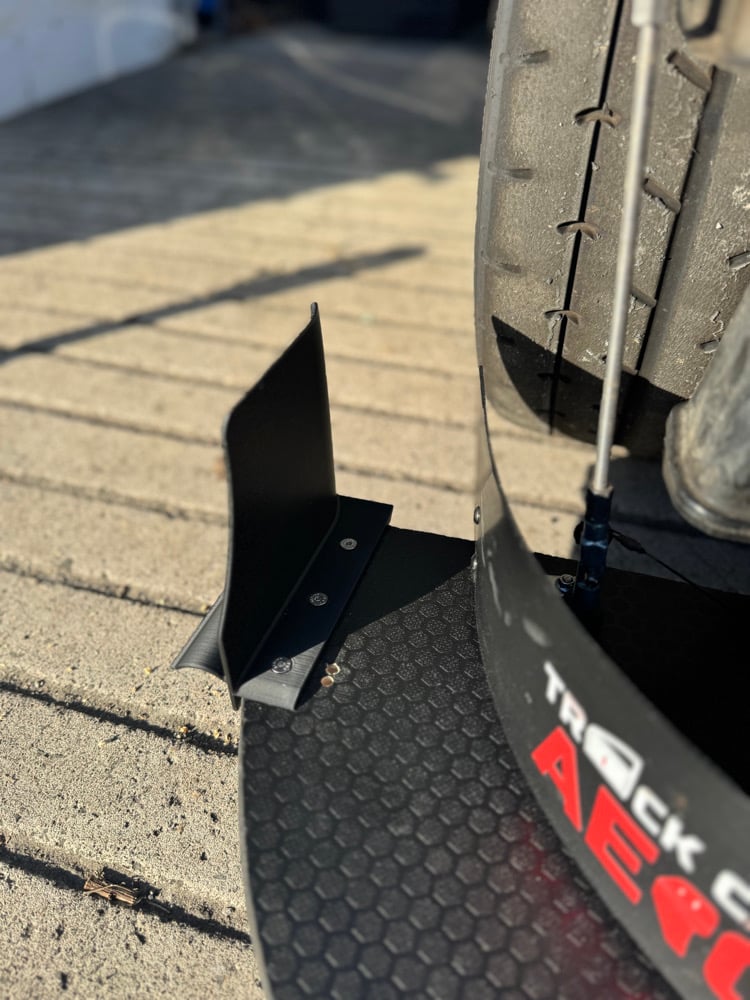

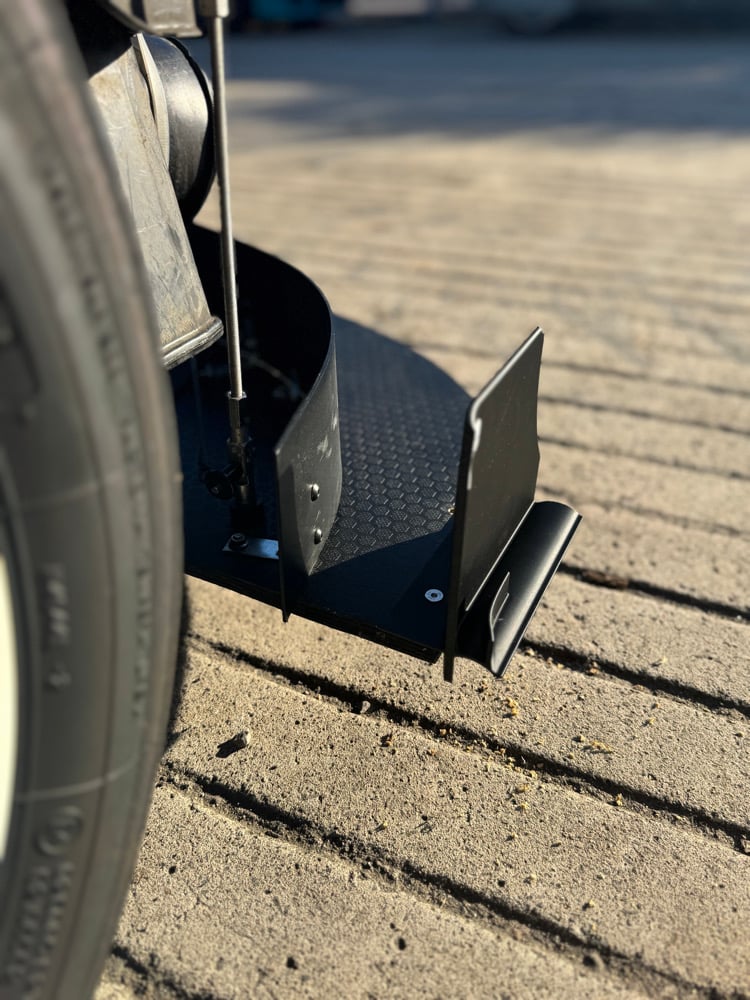

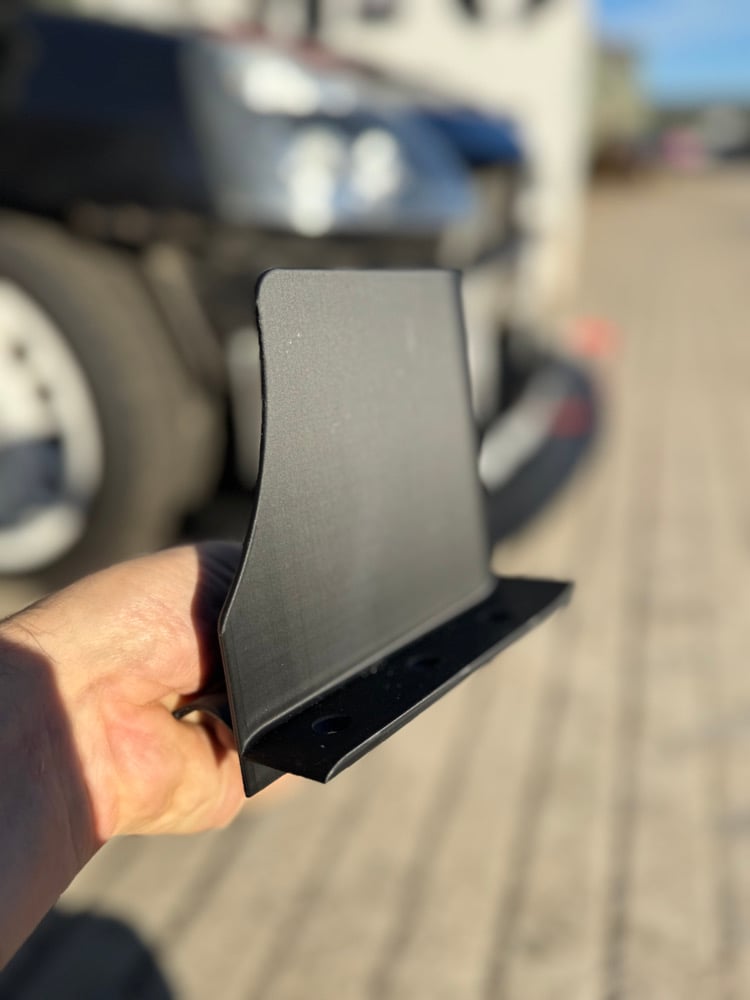

The end plate is designed for any thickness board as there are 3 mounting holes across the top you can use to bolt / screw to your splitter. Also there are 2 additional holes on the side if you need to use them (12mm spiller is the preferred size)

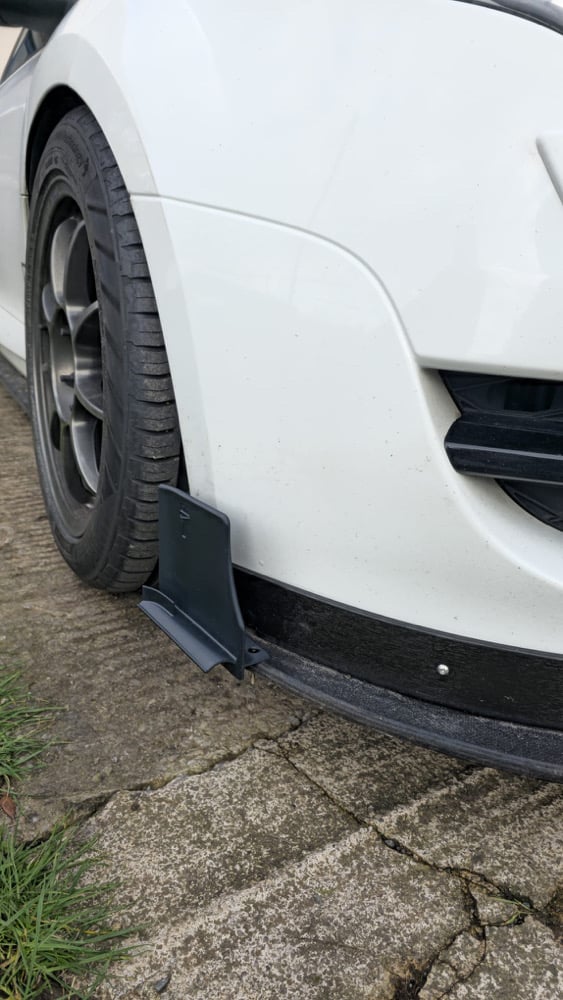

This end plate is designed when you have minimal space between the end of your splitter and the bumper for mounting.

End Plate dimensions:
145mm deep (front to back in including 5mm flange) - so 140mm along splitter edge
65mm wide (frontal / inc Venturi Channel) at the side
30mm mounting area (so minimum distance between edge of splitter and bumper to allow fitting unless you can remove your splitter to mount them and refit)
140 mm tall total height / 128 mm measured from top of splitter

Sold as a pair
